November 17, 2015

Internal tables in ABAP. Part 1

There are two kinds of tables in SAP, these are:
  • Transparent tables
  • Internal tables
Transparent tables are the database tables and they are referenced by the same name. The content of these tables are accessed by OPEN SQL which is a convention defined by SAP to map the data from these tables. These tables are created and modified in transaction 'SE11'.

Internal tables are data repositories that can have a defined structure and reside in the session memory. The structure of these tables can be one defined by our own structure, a transparent table structure or the combination of both. These can be created or defined in 'SE11' and/or as part of the source code of a program.

Most of the time in ABAP we are going to face the use of the latter when handling large amount of data that could finally be stored in a database or especifically in transparent tables. To access the rows of the internal tables we use special structures known as work areas and field symbols. We will cover more on field symbols in next posts.

There are 3 types of internal tables:
  1. Standard tables
  2. Sorted tables
  3. Hashed tables
  4. Any tables
  5. Index tables

Standard tables

Characteristics:
  • Is the most basic table structure and is used by the majority of (if not all) the function modules and everywhere in ABAP.
  • You can address data using an index and it is also possible to make a binary search which is logarithmically proportional to size of the table.
  • In order to make use a binary search it's necessary to sort the table first with key field.
  • No restrictions on duplicated keys.
  • Use APPEND to add rows to the table.
Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
DATA: it_data TYPE STANDARD TABLE OF ty_data, " It can also be defined as 'it_data TYPE TABLE OF ty_data' without the word 'STANDARD'
   wa_data TYPE ty_data. " Or alternatively: DATA wa_data LIKE LINE OF it_data.

DO 100 TIMES.
 wa_data-field1 = sy-tabix.
 CONCATENATE 'Data' sy-tabix INTO wa_data-field2.
 GET TIME FIELD wa_data-time.
 APPEND wa_data TO it_data.
ENDDO.

READ TABLE it_data INTO WA_DATA WITH KEY field1 = 50.

IF SY-SUBRC EQ 0.
 WRITE: / 'Read table using field: ',  wa_data.
ENDIF.

SORT it_data BY field1.
READ TABLE it_data INTO WA_DATA index 10.

IF SY-SUBRC EQ 0.
 WRITE: / 'Read using index: ', wa_data.
ENDIF.


Sorted table

Characteristics:
  • A key must be defined.
  • Can be sorted or non-sorted by specified key[s].
  • Always in ascending order.
  • It can't be used 'BINARY SEARCH', however internally it uses binary search. The search is logarithmically proportional to size of the table.
  • Can't be used the command 'SORT' on them.
  • Use INSERT <work area> INTO <sorted table> to add rows to the table. The new rows will internally be added according the key defined.
Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
DATA: it_sorted TYPE SORTED TABLE OF ty_data WITH UNIQUE KEY field1,
      it_non_sorted TYPE SORTED TABLE OF ty_data WITH NON-UNIQUE KEY field1.

DO 100 TIMES.
 wa_data-field1 = 100 - sy-tabix. " Number in descendent order
 CONCATENATE 'Data' sy-tabix INTO wa_data-field2.
 GET TIME FIELD wa_data-time.
 INSERT wa_data INTO it_data.
ENDDO.

READ TABLE it_data INTO WA_DATA WITH KEY field1 = 50.

IF SY-SUBRC EQ 0.
 WRITE: / 'Read using key field',  wa_data.
ENDIF.


Hashed table
  • Managed by a hash algorithm.
  • A key must be defined.
  • Main operation is key access.
  • Access time is constant.
  • It is recommended to use with big datasets.
  • Can't be used index to access data.
  • Use INSERT to add rows to the table.
Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
DATA it_hashed TYPE HASHED TABLE OF ty_data WITH UNIQUE KEY field1 field2.

DO 100 TIMES.
 wa_data-field1 = 100 - sy-tabix. " Number in descendant order
 CONCATENATE 'Data' sy-tabix INTO wa_data-field2.
 GET TIME FIELD wa_data-time.
 INSERT wa_data TO it_data.
ENDDO.

READ TABLE it_data INTO WA_DATA WITH KEY field1 = 50.

IF SY-SUBRC EQ 0.
 WRITE: / 'Read using key field',   wa_data.
ENDIF.


Index and Any table

These are generic tables and we are going to show their use in next posts. However they are defined like this.

1
2
3
FIELD-SYMBOLS <it_index> TYPE INDEX TABLE.

FIELD-SYMBOLS <it_any> TYPE ANY TABLE.

See you in the next.

Hope it helps.

November 10, 2015

Clear, refresh and free in ABAP

In contrast to other languages where we need to make use of its basic value to initialize the variables, in SAP we don't have to make such thing. Besides initialize or clear a variable with its basic value like integers to zero and strings to space(s), in SAP we can make use of the command 'CLEAR' that can also be used with any variable and structure. For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
DATA: lv_number TYPE n, lv_char type c.
lv_number = 1.
WRITE lv_number.
CLEAR lv_number. " Initialize to 0
WRITE lv_number.

lv_char = 'A'.
WRITE lv_char.
CLEAR lv_char. " Initialize to space[s]
WRITE lv_char.

The same applies to work areas;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
TYPES: BEGIN OF ty_data,
  matnr TYPE matnr,
  value(2) TYPE n,
  erdat TYPE erdat,
END OF ty_data.

DATA wa_data TYPE ty_data.
wa_data-matnr = '1'.
wa_data-value = '01'.
wa_data-erdat = sy-datum.

WRITE: 'Work area with data', wa_data.

CLEAR wa_data. " All members initialized

WRITE: / 'Work area cleared', wa_data.

The output is the following:

The effect on the content of field symbols is the same as work areas.

For internal tables we also have the option to use the CLEAR command and 2 options more: REFRESH and FREE. Let's show how they work with an example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
TYPES: BEGIN OF ty_data,
  matnr TYPE matnr,
  value(5) TYPE n,
  erdat TYPE erdat,
END OF ty_data.

DATA: it_data TYPE STANDARD TABLE OF ty_data,
wa_data LIKE LINE OF it_data,
lv_count type i.

DO 10 TIMES.
  wa_data-matnr = sy-index.
  wa_data-value = '01'.
  wa_data-erdat = sy-datum.
  APPEND wa_data TO it_data.
ENDDO.

DESCRIBE TABLE it_data LINES lv_count. " Variable lv_count has the value 10

CLEAR it_data[]. " This will initialize all the content of table including the table header
REFRESH it_data. " This will initialize all the content of table but not the table header
FREE it_data. " This will initialize all the content of table including the table header and will release from memory the table

CLEAR <itab>[]: Will initialize all the content of table including the table header. Check out the brackets.

REFRESH <itab>: Will initialize all the content of table but not the table header. **

FREE <itab>: Will initialize all the content of table including the table header and will release the table from memory.

** What is the table header? Well, when a table is defined like this:

1
DATA it_data TYPE STANDARD TABLE OF ty_data WITH HEADER LINE.

It means that you can use a work area defined within the table so you don't need to create a work area for this. However, it is not advisable, it's better to use work areas and field symbols. So please, don't take this as a regular practice, just have in mind that a lot of legacy code still has this type of declaration.

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
DATA: it_data TYPE STANDARD TABLE OF ty_data WITH HEADER LINE,
      lv_count type i.

DO 10 TIMES.
  it_data-matnr = sy-index.
  it_data-value = '01'.
  it_data-erdat = sy-datum.
  APPEND it_data.
ENDDO.

REFRESH it_data. " The work area within IT_DATA still has data.

WRITE it_data. " This will output of the work area'               10 0000120151110'

Well, that's all for this now.

See you in the next.

Hope it helps.

November 6, 2015

Find User-Exits and BAdIs in ABAP. Part 4

In the last post I showed a very simple but practical example about implementing a BAdI. This time I'll show how to implement a classical user-exit. As I wrote before, a BAdI is also a user-exit but in an object oriented version .

Also it's a matter of investigation and you must study all the possibilities when looking for a solution to your business requirement. Some stuff can't be definitely be done however there's at least a standard way to implement it.

For example, once I had this requirement where I needed that a replenishment transaction could divide all the generated purchase requests by the purchasing group. By standard this is not possible so it was necessary to create a program. Being SAP a complete ERP with the best practices in the business it's better to follow its instructions rather than re-inventing the wheel.

As we did in the previous post we must look for the user-exits in the transaction we are trying to enhance. When we have it we must use the transaction 'CMOD'. This transaction works creating projects where we group all the user-exits.

Before we use 'CMOD' we can check transaction 'SMOD', which is used to look for details of the user-exit like parameters and documentation if available.This same information can be watched in transaction 'CMOD', however, you must create the project first.

In this example we are going to implement a simple user-exit for transaction 'VKP1' (Change price calculation). The name of the user-exit is 'LWVK1003', which you can find with a program I posted before.

Let's implement it:

1. Execute transaction 'CMOD'.

2. Name the project 'ZMYENH'.

3. Click on button 'Create'.

4. Type a brief description of the project.

5. Click the button 'Enhancement assignments'. At this stage you'll be requested to create a transport request before saving.

6. Type in the textbox 'Enhancement' the user-exit name 'LWVK1003'.

7. In the same screen click the button 'Components'.

8. A screen with the user-exits is going to be shown. There you will see your enhancement. Double click on it.

9. Now a function module with the name 'EXIT_SAPLWVK1_003' is shown in the screen with the following code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
function exit_saplwvk1_003 .
*"----------------------------------------------------------------------
*"*"Lokale Schnittstelle:
*"  IMPORTING
*"     VALUE(PI_KALP_UPDKZ) LIKE  KALP-UPDKZ
*"     VALUE(PI_I_KALP) LIKE  KALP STRUCTURE  KALP
*"     VALUE(PI_I_VORGA) LIKE  PISVR-VORGA OPTIONAL
*"     REFERENCE(PI_I_GLOB) TYPE  GLOB OPTIONAL
*"  EXPORTING
*"     VALUE(PE_I_ERRO) LIKE  ERRO_TEMP STRUCTURE  ERRO_TEMP
*"----------------------------------------------------------------------


include zxvkpu04 .


endfunction.

10. Double click on the word 'zxvkpu04'.

11. Copy and paste the following code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
  case pi_kalp_updkz.

*-- Insert of a pricing position --------------------------------------*
    when 'I'.

*-- Update of a pricing position --------------------------------------*
    when 'U'.
*---- Sales price is less than net-net-purchase price -----------------*
      if pi_i_kalp-vkpne lt pi_i_kalp-ekpnn.
        pe_i_erro-msgid = 'WV'.                      "Message class WV
*       PE_I_ERRO-MSGTY = 'E'.                       "Error
        pe_i_erro-msgty = 'W'.                       "Warning
        pe_i_erro-msgno = '463'.                     "Message no 463
        exit.
      endif.

  endcase.

12. Activate the code.

13. Return to function module with 'F3'.

14. Return to the project.

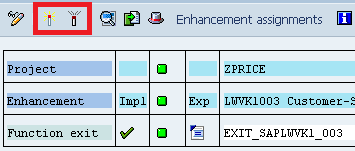

15. Activate the project and exit of transaction 'CMOD'.

16. Execute transaction 'VKP1' and test it with any material.


When I execute transaction 'VKP1' and the sales price is less than net purchase price the system responds with a warning.



You can debug placing a break-point in your code and check the execution.




Finally I would like to add that in a project you can add as many user-exits as you may want. Just try to group them according to you business module and areas.

See you in the next.

Hope it helps.

September 4, 2015

Find User-Exits and BAdIs in ABAP. Part 3

Hi, in the previous posts I wrote about how to customize SAP using user-exits. If you haven't read them I encourage you to go to part 1 and part 2 before you continue.

A user-exit can be a new field in a screen or a new functionality. These user-exits are often provided by SAP however is possible to make non-standard changes through explicit enhancements and coding directly in the source code.

In this post we are going to explain the implementation of a BAdI. BAdI stands for "Business Add-In" and is basically a class that is instantiated with custom code of our own. These classes are pre-defined and are located in strategic places in order to change data and sometimes to add a screen with custom data.

The search of BAdIs (and all user-exists in general) is esential in this stage. It's also helpful to read the documentation in SAP and in scn.sap.com to understand the impact and the possible consequences of the changes you want to perform.

The example I want to show is to implement the BAdI 'BADI_MATERIAL_CHECK'.

So, let's code ABAP:

1. Execute transaction 'SE18'.

2. Type in BAdI name 'BADI_MATERIAL_CHECK'.

3. Let's make a pause to explain what we are watching:

The first screen shows two tabs; the first one indicates the package it belongs, the language and who and when was made the last change in the BAdI.

The other section is very interesting because it shows you how this class is going to be used. There's an option 'Wtihin SAP' which is internal and can only be modified or implemented by SAP. When this option is not checked then you can proceed to create your own implementation. I haven't done it yet however you could make your own BAdIs and implement them in your programs.

The other important option is 'Multiple use' which means that you can create one or more implementations from this BAdI. If this option is not checked it means that one and only one implementation can be made for this BAdI.


The other tab 'Interface' shows all the methods that can be implemented. In this stage you must check which fits your requirement and also its parameteres.


For our example double click on method 'CHECK_DATA' and let's review the parameters. First of all, let's say that there are four types of parameters:
  1. Importing
  2. Exporting
  3. Changing
  4. Returning


By default the IMPORTING parameters come with data but can't be changed. The EXPORTING parameters are filled with data to be used outside the BAdI to follow the flow of the program and the CHANGING parameters are the same as EXPORTING but these are reference of data that comes from the program flow. The RETURN parameters work very similar to the EXPORTING parameters.

4. Goto menu Implementation / Create


5. Type an implementation name. This name must be inititiated with 'Z' or 'Y'.


6. Type a description for the implementation.


7. Go to 'Interface' tab and double click method 'CHANGE_DATA'.


8. There are two CHANGING parameters that are permitted to be modified, so we can use parameter 'STEXT' to have a value. Copy and paste the following code.

method IF_EX_BADI_MATERIAL_CHECK~CHECK_DATA.
  data wa_stext like line of stext.
  wa_stext-spras = 'S'.
  wa_stext-maktx = 'My text'.
  append wa_stext to stext.
endmethod.

9. Activate the changes and create a transport order if it is asked.

10. Finally, after the changes are made to the method, return and activate the BAdI. You must perform this action once, normally the first time. If you want to deactivate it click on the button at the right.

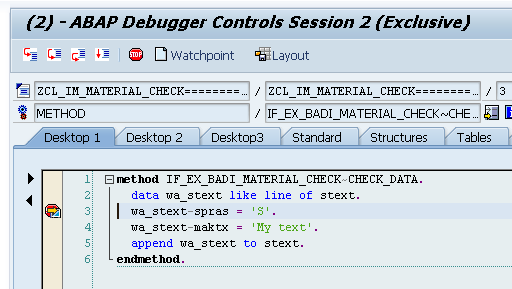

10. Set a breakpoint in the code inside the BAdI and create a material with transaction MM01. After you press the save button the debugger will pop up in the breakpoint you set. This was made intentionally to show how the BAdI will function.


Press F8 key to continue.

11. After the material is created go to transaction MM03 to visualize the material you recently created and then click on the 'Additional data' button.


13. Watch the results.



Of course, this is a simple example but other BAdIs involve to create dynpros and many other times there are no EXPORTING or RETURNING parameters and you must find other BAdIs or study a little more in order to achieve the task. I recommend to study the documentation and/or go to scn.sap.com forums. There are people who already done your solution.

WARNING: PLEASE, DO NOT PERFORM A COMMIT WORK, ROLLBACK OR RAISE ANY MESSAGE inside a BAdI. This action could lead to erroneous and inconsistent data in SAP because the BAdI instance is inside a LUW and committing/rolling back will perform changes in database without ending the process.

In the next article we'll implement a user-exit with transaction ' CMOD'.

See you in the next.

Hope it helps.

August 8, 2015

Find User-Exits and BAdIs in ABAP. Part 2

In the first post I gave a brief introduction of what are user-exits and BAdIs and what are for. This time I'm going to dive a little deeper on this issue.

As I wrote before when SAP is implemented in a company, it is often customized according to the business rules and procedures. This customizations consist in modifying the behaviour of transactions, change calculations, change screens and also adding or hiding data. SAP provides areas where the implementers can make this adjustments and prepare the system to work as the business requires.

I can tell only on my experience but as far as I'm concerned, SAP provides the best practices for the business, so, it is a great opportunity for the company to follow this work methodolgy. That is why SAP is very specialized tool and needs experienced functional users to manage this situations.

There are other configurations that can be made that are not necessarily user-exits or BAdIs, for example, it is possible to re-arrange screens and create code specifically address to a field or procedure. This configurations can be made through transaction 'OMT3B' in the case of material master data screen in the Retail version. This kind of configurations are beyond the scope of this post, however if you need more information you can go to SAP for more information.

One thing before I continue; in the big picture, every standard modification is known as user-exit, so to say, a screen-exit, BTE, VFOM and a BAdI all are considered as it.

Ok, once it is identified the transactions and programs to be enhanced it is necessary to look for those user-exits and/or BAdIs. So, how do we find them?

Well, there are some transactions and techniques that can help, I personally use three ways and it depends what I'm trying to do:

For the first option is necessary to identify the package of the programs using transaction 'SE93' or in the menu System / Status.

Transaction 'SE93' is used to create/modify/display transactions in SAP and provides among other information the name of the program and package it belongs, the same for the menu option.

1. Execute transaction 'SE93', type in transaction code the value 'MM01' and then click the button 'Display'.

2. Copy the package name.


3. Execute transaction 'SMOD'.

4. Click on text box 'Enhancement' and press key 'F4'.

5. Click button 'Information System' and then paste the package name in the text box 'Package'.


6. Finally press 'Enter' and it will appear the list of user-exits of that package.

To find BAdIs is a little more tricky because you need to debug the program or transaction. Follow the following instructions:

1. Execute transaction 'SE24'.

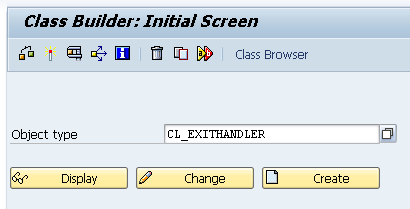

2. Type in the text box 'Object type' the class name 'CL_EXITHANDLER' and then click button 'Display'.


3. Double click the method 'GET_INSTANCE'.


4. Set a break point after 'get_class_name_by_interface'. The 'class_name' parameter is the value we are interested in.


5. Now, open another session and execute the transaction you want to be analyzed. If there's a BAdI then a debugging window will rise up in the breakpoint you set in the latter step.

6. Check the 'class name'. Then press F8 and when pauses in the same breakpoint then there it is another BAdI and then successively.

Fortunately you don't have to set the breakpoint in the 'CL_EXITHANDLER' at the beginning of a transaction, you can make it at any moment, for example, when clicking to save in a transaction.

Both techniques are good and practical however, there's an another even more practical way and is quicker than the other ones. There are several free abap code in the internet that you can use to find both user-exits and BAdIs.

You can find a very good one here. http://wiki.scn.sap.com/wiki/display/Snippets/Find+User-exits,+BADIs,+BTEs,+Etc+by+TCode+or+Program

As a side note, I know is faster to use the ABAP program however, it is necessary to learn to find these enhancements using the first two options because sometimes these programs can't see all these exits, so make your homework to be sure.

On the next post I'll show how to implement a user-exit.

Hope it helps.

August 2, 2015

Find User-Exits and BAdIs in ABAP. Part 1

In my beginnings with SAP I remember that I discovered these excellent features named 'user-exits' and 'BAdIs'. These concepts are very strong traits in SAP because they let you change the behaviour or the appearance of a program or transaction according to you necessity.

Most of the time when SAP is installed and implemented, usually the company customize some business areas, for example, the business requires to add an extra field to a screen, set a default value in a data, apply a new hierarchy of taxes, round a quantity and others, and all these enhancements are achieved through these 'doors', so to speak.

The user-exits and BAdIs focus on the same issue however they are implemented differently and all are set by SAP, in other words, SAP defines where this user-exits and BAdIs work in the system. The key here is to identify and apply them, so, if we want to modify the standard behaviour of some transaction, the path to follow is to find out if we can apply a user-exits or BAdIs.

A question to follow the latter is; what is the difference between those concepts if they do the same thing? Well, the answer is that BAdIs are the new way of applying user-exits and are more related to the object oriented design of the late version of SAP SAP R/3 a few years ago.

This doesn't mean that user-exits are deprecated, however in future upgrades of SAP we will see more BAdIs implemented specially on new transactions.

There are other ways to change SAP in order to make it behaves as we want, these are the 'enhancements' and 'modifications'. Enhancements are standard modifications at the top or bottom of a form where you can code and switch some values. These can be modified and deleted anytime.

The modifications consists in changing directly the standard code of SAP, but at this stage, you need to ask pemission to SAP communicating what are you going to change and then SAP will give an authorization code that will be registered in its logs, so, SAP will know that you are going to change the standard source code and also where are you making it.

As you may imagine, these last ones should be the last resource to make because, depending on the transaction and unless you know exactly what are you doing, you are taking a big risk here. You are potentially exposing yourself to make a disaster on the implementation and if you do that, SAP will not take responsability on this issue. So, I would not recommend to follow this path to anyone unless, as I told you, you know exactly what you're doing.

For the latter maybe you could take the risk on reports which are inofenssive but you must be careful because your users could get a dump and that is not a good situation, especially if the transaction you enhanced is commonly used.

So, my best advice to you is try the standard solutions first and then, if you don't achieve what you want to do then I suggest to have a technical meeting with your coworkers and get a better approach to your requirement.

On my experience I can tell that there is always a standard solution or at least there is SAP way  to achieve what you need to make and is very uncommon to make enhancements and yet less 'modifications', in fact, I evaluate very much the options that SAP gives me and then I proceed with it. The key here is to find the user-exit or BAdI that will tackle you necessity and how to code them.

One advantage of this is the knowledge you get. Basically you learn and get valuable experience on SAP and on the module you're working, and at the end this will benefit you a lot as an SAP professional. So, take my advice and make sure there's a standard way in SAP.

Well, this was only an introduction. On the next post I'll write more details and show how to implement user-exits and BAdIs and how to find them. So, see you on the next post.

Hope it helps.

July 25, 2015

Convert data to specific type in ABAP

There are occasions where we need to make specific conversions in our data. That scenario happened to me with a log table whose data needed to be used to make summaries. There was a column of CHAR type which had the values to be used.

Fortunately this table also had the table name and the field name as fields and they happened to be very useful for my purposes.

I found a function module named 'RS_CONV_EX_2_IN' where you send as parameters the value to be converted, the referenced table name and referenced field name and the result is the value converted to the specified format. The only caveat here is that you have to specify the appropriate table and the field name as parameters.

Let's code ABAP.

Copy and paste the following code and run:

report  zconversion.

start-of-selection.
  perform test.

form test.
  data: oref      type ref to cx_root,
        lv_value  type char255,
        lv_result type datum,
        lv_kbetr  type bwert,
        lv_error  type string.

  try.
    lv_value = '01012015'.
    perform convert_to_date using lv_value changing lv_result.
    write: / 'Date:', lv_result.
  catch cx_root into oref.
    lv_error = oref->get_text( ).
    write / lv_error.
  endtry.

  try.
    lv_value = '1033.12'.
    perform convert_to_curr using lv_value changing lv_kbetr.
    write: / 'Value:', lv_kbetr.
  catch cx_root into oref.
    lv_error = oref->get_text( ).
    write / lv_error.
  endtry.
endform.

form convert_to_date using p_value type char255 changing r_value type datum.
  perform convert using p_value 'SYST' 'DATUM' changing r_value.
endform.

form convert_to_curr using p_value type char255 changing r_value type bwert.
  perform convert using p_value 'KONP' 'KBETR' changing r_value.
endform.

form convert using p_value type char255 p_tabname type tabname p_fieldname type fieldname changing r_value type data.
  data wa_tabfield type tabfield.

  check p_value is not initial.

  wa_tabfield-tabname    = p_tabname.
  wa_tabfield-fieldname  = p_fieldname.

  call function 'RS_CONV_EX_2_IN'
    exporting
      input_external  = p_value
      table_field     = wa_tabfield
*     currency                           =
    importing
      output_internal = r_value
    exceptions
      input_not_numerical                = 1
      too_many_decimals                  = 2
      more_than_one_sign                 = 3
      ill_thousand_separator_dist        = 4
      too_many_digits                    = 5
      sign_for_unsigned                  = 6
      too_large                          = 7
      too_small                          = 8
      invalid_date_format                = 9
      invalid_date                       = 10
      invalid_time_format                = 11
      invalid_time                       = 12
      invalid_hex_digit                  = 13
      unexpected_error                   = 14
      invalid_fieldname                  = 15
      field_and_descr_incompatible       = 16
      input_too_long                     = 17
      no_decimals                        = 18
      invalid_float                      = 19
      conversion_exit_error              = 20
      others                             = 21.

  if sy-subrc <> 0.
* message id sy-msgid type sy-msgty number sy-msgno
*         with sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  endif.
endform.

The most important part of this code is the 'convert' form which makes all the conversion. In case the function fails then result is going to be the initial value of the variable. Check the SY-SUBRC value in the latter case.

Another important part of the code is 'r_value' parameter which is of  'data' value that is a generic type that will return the appropriate variable.

Hope it helps.

July 14, 2015

Text elements in ABAP

When programming in ABAP there are features that are intrinsical to SAP. One of those features are 'Text elements', which purpose is to be used as 'constants' or 'labels' for titles and messages and are defined according to the language of your session.

Text elements are everywhere in SAP, in fact every time you log in, there's a default language which indicates to SAP to load the corresponding titles in all the application. If you choose in your login to use another language then all the screens are translated to that language.

We, as abapers, can make use of those text elements but also can make our own. Tipically when we create a report or a module pool we define text elements to show titles and messages in the screens.

There are three types of text elements;
  1. List headings
  2. Selection texts
  3. Text symbols
Text symbols are out of the scope of this article however this type of text element si used to print a report in the screen when we are not using an ALV.

Selection texts are labels used for input. When we define a parameter, a select-options or checkboxes, etc.

Text symbols are used inside the program to set header for screeens or messages. This kind is the most used in ABAP.

Ok, let's code ABAP;

1. Let's create a report with transaction 'SE38' and paste the following code.

report  ztext_element.

tables mara.

data wa_mara type mara.

selection-screen: begin of block b1 with frame title text-001.
  select-options so_matnr for mara-matnr.
selection-screen: end of block b1.

start-of-selection.

select * into wa_mara from mara up to 10 rows where matnr in so_matnr.
  write / wa_mara-matnr.
endselect.

if sy-subrc ne 0.
  write / 'No data'(002).
endif.

2. Ok, let make a pause here. There are two text symbols in the code above. The first one is in the selection screen and it's name is 'text-001' and the second is inside de if statetement at the bottom and is identified as '(002)'.

We have also a 'SELECT-OPTIONS' which is used for inputs to be used later. However we can set 'Selection texts' to it. This feature also work with 'PARAMETER'.

Activate and run the program.

You'll see the following screen.


3. Return to the source code and go to the menu Goto / Text elements / Text symbols.


4. Type the following data in the grid.


5. In the same screen click on the 'Selection texts' tab. You'll see the following:


6. Click on the 'Dictionary' check and press enter and automatically the word 'Material' is shown because you set the check to extract the text from 'Dictionary'. If you don't want to set that check, you have the freedom to type your own name. At the same time a message at the bottom will show the operation of getting the name from the dictionary.



7. Activate the text elements and then return to source code.

8. Activate the program and then run. Check the image.


Now the box has the name 'Parameters' and instead of 'SO_MATNR' we have the name 'Material' for the SELECT-OPTION.

9. In the same page execute the program or press 'F8' and check the results.

Finally, I want to write about the following code:

write / 'No data'(002).

How does this works? Well, actually that's also a text symbol, however what this means is that unless the text symbol '002' is defined then the program in this case will print 'No data'. If the text symbol '002' is defined then the program will the value of text-002.

This gives you the ability to have a default value in your program and a flexible way to work with different languages in SAP.

Well, that's it for now.

Hope it helps.
